• ● With excellent efficiency and performance, PMS motors provide reliable and durable power solutions for forklifts, achieving efficient operation, extending equipment service life, and reducing maintenance costs.

    ● The lithium battery, equipped with automatic heating functions, enhances performance in low-temperature environments.

    ● The lithium battery features a quick-charge function.

    ● A standard side charging port allows for easy access without the need to open the hood.


  • ● LED lights provide superior illumination while conserving energy.

    ● The spacious mast design offers exceptional visibility, enhancing operational safety and work efficiency.

    ● An IPX4 protection rating enables the vehicle to operate safely in outdoor environments.

    ● Speed reduction when cornering improves vehicle stability.

    ● The high-voltage interlock detection and overvoltage detection systems trigger protective measures promptly for enhanced safety.

    ● The Battery Management System (BMS) improves the safe, efficient, and stable operation of the battery pack, providing the truck's control systems with essentia battery status information for optimal energy management and performance.


  • ● The newly designed streamlined frame features an improved finish and aesthetics.

    ● The ergonomically designed cab significantly enhances comfort and control during operations, resulting in an improved driving experience.

    - Reinforced operator compartment

    - Fully adjustable steering wheel

    - Ratchet-type handbrake

    - Suspension foot brake

    - Water cup holder

    - USB charging port

    - Hydraulic control levers

    ● Low side steps and a grab handle facilitate safe and easy access for operators to the operator compartment.

  • ● The profile steel mast construction offers a sturdy and rigid mast that minimize deflection, maximizing durability and performance.

    ● The PM controller maintains working temperatures below 60°C, thereby improving the service life of the motor and controller.

    ● Larger tire sizes and higher ground clearance provide good performance on bumpy outdoor roads.

    ● The mature and tested structural design is ideal for both indoor and outdoor working conditions.

    ● The truck can operate in cold storage environments at -20°C even after 15 hours of parking.

  • ● The LCD display, equipped with diagnostic functionality, significantly reduces troubleshooting time.

    ● Maintenance-free motors and advanced electronic control systems minimize maintenance requirements, effectively lowering long-term operating costs.

    ● The highly integrated power system simplifies the wiring harness layout and effectively reduces the failure rate, enhancing system reliability and ease of maintenance.

    ● Compared to conventional AC forklifts, service intervals can be extended by approximately 20%.

Media Gallery

Product Specifications

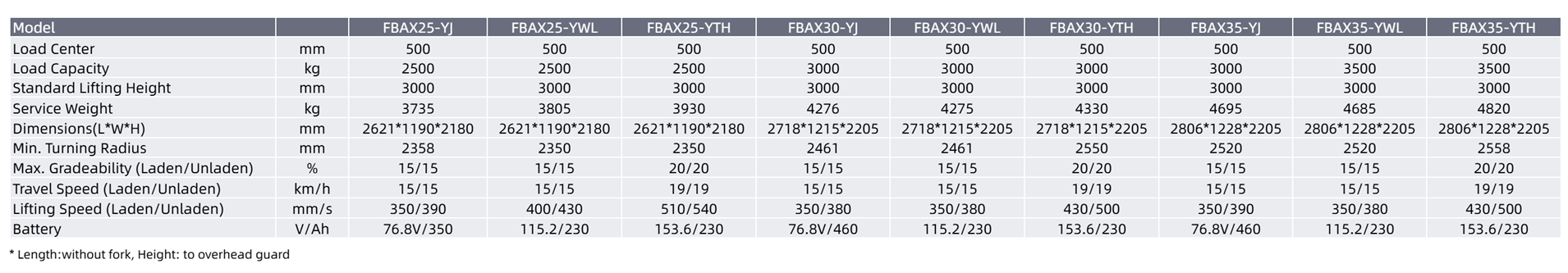

AX Series 2.5-3.5ton Specification

Learn more about AX Series 2.5-3.5ton

Download
