A Series 1.5-3.5ton
● AC motors deliver high torque performance while requiring minimal maintenance.
● The 48V system is designed for 2.5T models, while the 80V system is intended for models ranging from 3T to 3.5T.
● The lifting speed has been increased by 5% to 10%, resulting in energy savings, reduced consumption, and improved overall efficiency.
● LED lights provide superior illumination while conserving energy.
● The spacious mast design offers exceptional visibility, thereby enhancing operational safety and efficiency.
● The protection rating is IPX4.
● The proven and reliable ZAPI controller offers infinitely variable drive and lift control, featuring regenerative braking that effectively captures and stores energy.
● The newly designed streamlined frame provides a superior finish and improved aesthetics.
● The ergonomically designed cab significantly enhances comfort and control during operations, improving the overall driving experience.
- Reinforced overhead guard
- Fully adjustable steering wheel
- Ratchet-type handbrake
- Suspension foot brake
- Water cup holder
- USB charging port
- Hydraulic control levers
● Low side steps and a grab handle facilitate safe and easy access to the operator compartment for operators.
● Dedicated electric forklift tires improve stability and energy efficiency.
● A low center of gravity, coupled with smaller tires, enhances overall truck stability.
● The profile steel mast construction creates a sturdy and rigid mast that minimizes deflection, providing maximum durability and performance.
● The LCD display with diagnostic functionality significantly reduces troubleshooting time.
● Maintenance-free motors and advanced electronic control systems minimize maintenance requirements, effectively lowering long-term operating costs.
● The electrical control panel and associated equipment are conveniently located within the counterweight for easy access and protection against floor debris, contaminants, and moisture.

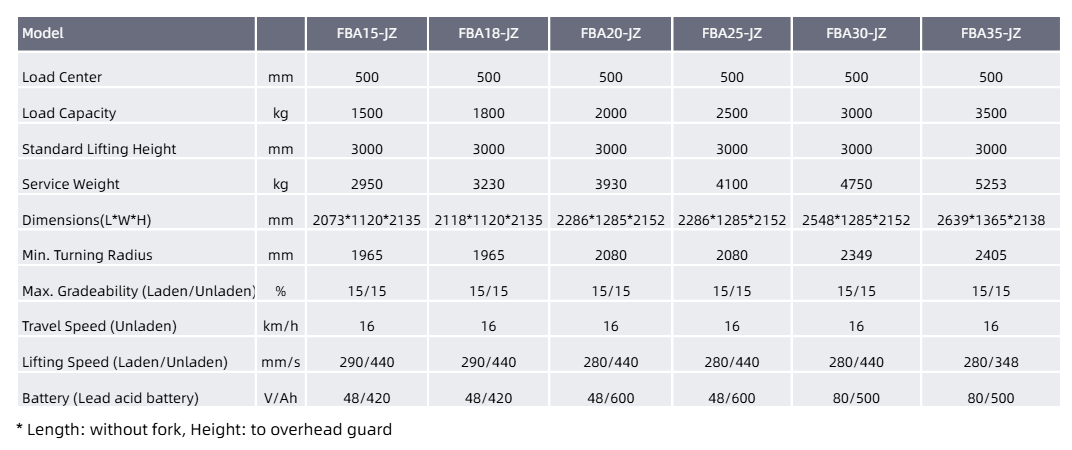

Product Specifications
Applications
