• ● The on-board voltage platform operates at 153.6V , significantly increasing working efficiency and reducing energy consumption.

    ● The PM controller system enhances driving comfort, providing more accurate low-speed control and faster high-speed response.

    ● Intelligent fast side charging technology enables a full charge in just 2.5 hours, effectively meeting the demands of high-intensity, high-load continuous operation.

    ● The permanent magnet synchronous motor has an IP65 protection rating, offering efficient performance with peak efficiency of up to 95%.

    ● With outstanding efficiency and performance, PMS motors offer reliable and durable power solutions for forklifts, enabling efficient operation, extending equipment service life, and reducing maintenance costs.

    ● The lithium battery, equipped with automatic heating functions, enhances performance in low-temperature environments.

    ● The lithium battery features a quick-charge function.

    ● A standard side charging port allows for charging without the need to open the hood.

  • ● LED lights provide improved illumination while conserving energy.

    ● The spacious mast design offers exceptional visibility, enhancing operational safety and work efficiency.

    ● The IPX4 protection rating allows the truck to operate effectively in outdoor environments.

    ● The standard speed reduction when cornering improves truck stability.

    ● High-voltage interlock detection and overvoltage detection systems activate protective measures promptly for enhanced safety.

    ● The Battery Management System (BMS) enhances the safe, efficient, and stable operation of the battery pack while providing the truck's control systems with essential      battery status information for optimized energy management and performance.

    ● A 12V low-voltage system is employed to control the 153.6V high-voltage system, enhancing the overall security of the electrical circuit.

    ● PM controllers and independently developed cable protection connectors have an IP65 protection rating.

    ● High-voltage interlock detection and overvoltage detection systems promptly trigger protective measures for heightened safety.


  • ● The newly designed streamlined frame features an improved finish and aesthetic appeal.

    ● The ergonomically designed cab significantly enhances comfort and operational control, leading to a better driving experience.

    - Reinforced overhead guard

    - Fully adjustable steering wheel

    - Ratchet-type handbrake

    - Suspension foot brake

    - Water cup holder

    - USB plug-in mounting port

    - Hydraulic control levers

    ● The side battery extraction system provides continuous operation under demanding conditions, even when power charging is not available.

    ● Low side steps and a large grab handle provide operators with safe and convenient access to the cab

    ● The standard vehicle noise level is maintained below 70 dB(A).

  • ● The profile steel mast construction creates a sturdy, rigid mast that minimizes deflection, delivering maximum durability and performance.

    ● The PM controller maintains working temperatures below 60°C, thereby improving the service life of both the motor and controller.

    ● Larger tire sizes and higher ground clearance provide excellent performance on bumpy outdoor roads.

    ● The mature and tested structural design is suitable for both indoor and outdoor working conditions.

    ● The truck can operate in cold storage environments at -20°C even after 15 hours of parking.

    ● The intelligent      water-cooling system effectively absorbs and dissipates heat generated by the motor and controller, keeping the maximum system temperature below      60°C, which significantly extends its service life.

    ● Using Finite Element Analysis (FEA) in the design, the truck achieves strength comparable to that of an internal combustion truck frame, providing excellent reliability.

    ● The drive axle utilizes an integral shaft structure, which offers higher strength and adaptability to a wide range of harsh conditions.

  • ● The LCD display with diagnostic functionality significantly reduces troubleshooting time.

    ● Maintenance-free motors and advanced electronic control systems minimize maintenance requirements, reducing long-term operating costs.

    ● The highly integrated power system simplifies the wiring harness layout, effectively reducing the failure rate and enhancing system reliability and ease of maintenance.

    ● Compared to conventional AC forklifts, the service interval can be extended by approximately 20%.

Media Gallery

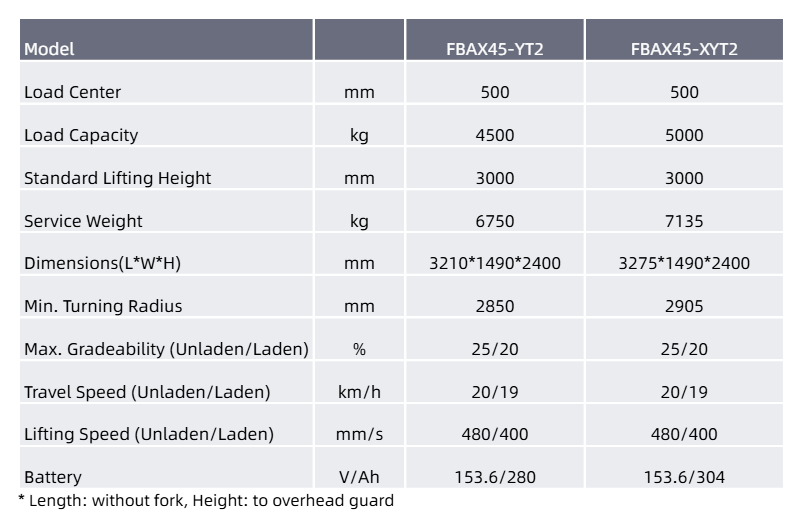

Product Specifications

AX Series 4.5-5ton Specification
