PS15-MRX, PS15-MRXK
-
● Centralized tiller design enables easy and precise one-hand operation.
● Compact body design allows for smooth control in narrow spaces.
● Advanced AC control system ensures efficient operation and enhanced performance.
● Intelligent deceleration system with efficient regenerative braking improves energy efficiency.
● Stepless speed control provides smooth acceleration and deceleration, enhancing user convenience.
● Small turning radius with a standing drive motor system improves maneuverability in tight areas.
● The AC motor eliminates the need for carbon brush replacement, reducing maintenance costs.
● Damping cushion minimizes noise, ensuring quiet operation.
● Electric Power Steering (EPS) is offered as an option. Compared to the standard mechanical steering, EPS allows the driver to complete steering operations more easily, providing a smoother and more comfortable driving experience.
-
● Low ground clearance provides added stability and reduces tipping risks.
● The tiller maintains a safe operating distance between the vehicle and the operator for maximum safety.
● Full mast coverage protects the operator and surroundings during operation.
● Forks lowering buffer minimizes impact, reducing wear and tear on components.
● Explosion-proof valves enhance hydraulic safety by preventing sudden failures.
● Battery low voltage protection ensures safe operation and extends battery life.
● Automatic power-off during charging prevents electrical hazards.
● Emergency reversing device improves safety during critical situations.
● Built-in pressure relief valve protects the vehicle from overloads, ensuring reliable performance.
● Emergency power disconnect switch allows for quick shutdown during emergencies.
● A lifting limit switch is triggered when the fork reaches its maximum height, issuing a shutdown command to the pump motor for enhanced safety.
● Braking is automatically applied when the handle is in an upright or horizontal position, further enhancing vehicle safety.
● Turtle Speed Mode enables precise control during low-speed maneuvers, especially in tight areas.
-
● Multi-function display with Battery Discharge Indicator (BDI) and hour meter provides real-time status monitoring.
● Extended operating time with a standard 24V/60Ah lithium battery and an optional 24V/100Ah battery.
● Additional battery configuration: 24V/240Ah lead-acid battery, with optional lithium battery upgrades (24V/150Ah or 24V/230Ah).
● Easy and convenient charging system reduces downtime.
● Upright drive functionality allows for efficient operation in narrow aisles.
● Adjustable forks for straddle pallet stackers provide increased versatility for various pallet sizes.
-
● The vehicle has passed rigorous stability tests to meet high safety standards.
● Speed is automatically limited when the forks are raised to 1800mm or higher, ensuring better balance.
● Low center of gravity improves stability and control during operation.
● Water-proof and dust-proof motor structure enhances durability, ensuring reliable performance in challenging environments.
-
● Simple electrical system design ensures easy operation and maintenance.
● Low after-sales service costs provide long-term economic benefits.
● Quick and easy fault diagnostics help minimize downtime.
● Brake release mechanism simplifies maintenance procedures.
● Advanced wiring technology reduces complexity, improving reliability and serviceability.
● Side-extraction battery with roll-out system (for lead-acid batteries) offers easy and convenient replacement.
● Side-mounted battery design simplifies maintenance tasks.
● Vertical driving wheel design ensures easy maintenance and provides a small turning radius for better maneuverability.
● Dividable and exchangeable mast and frame components improve serviceability and part replacement convenience.

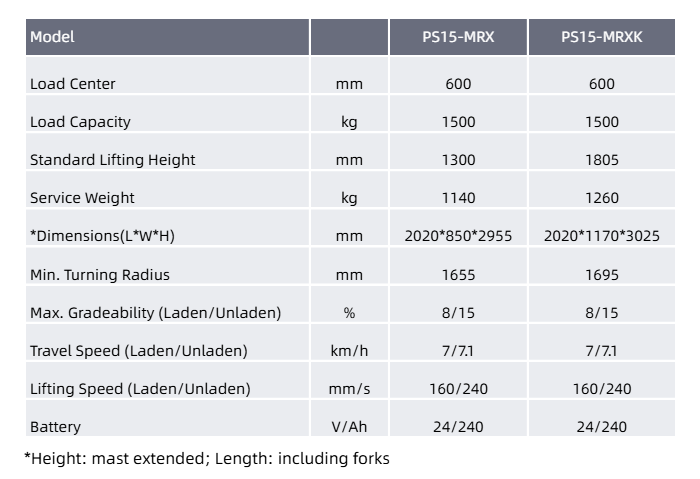

Product Specifications
Applications
