• ● 347V High-Voltage Platform: Utilizes a high-safety-grade high-voltage electrical system (347V+) offering lower current, minimal heat loss, and superior energy efficiency compared to traditional 80V platforms.

    ●  Dual Permanent Magnet Synchronous Motors (PMSM): High-efficiency driving and lifting motors allow travel speeds up to 20km/h and lifting speeds of 0.33m/s, outperforming IC forklifts.

    ●  Integrated Rapid Charging: Supports CCS 2.0 standard DC fast charging. A full charge in 1.2–1.5 hours make heavy-duty multiple shifts become possible

    ●  High-Ratio Gearbox: Optimized for superior gradeability and acceleration under load.


  • ● High-Voltage Safety Suite: Includes Real-time Insulation Monitoring, Equipotential Bonding (to prevent interference/arcs), High-Voltage Interlock (HVIL), and a Manual Service Disconnect (MSD).

    ● Operational Security: Equipped with an Electronic Parking Brake, Hill-Start Assist (preventing roll-back), and an Operator Presence System (OPS) that disables functions if the seat is vacated. Fork lowering cushioning protects cargo and improves operational safety.

    ● Intelligent Battery Management: Integrated heating for cold climates, automatic power-off when fully charged, and smart sensors for fire prevention.


  • ● Automotive-Style Cabin: Features a 5'' color LCD, spacious leg room, an adjustable steering column, and a USB charging port for convenience.

    ● Superior Visibility: Wide-view mast and profiled overhead guard steel ensure a clear view of the load and surroundings.

    ● CAN-bus Diagnosis: Simplifies wiring and provides real-time error codes on the display for rapid troubleshooting.

  • ● Advanced Liquid Cooling (TMS): A sophisticated Thermal Management System for the battery, motors, and electronic controls. Ensures stable operation in extreme heat or high-intensity cycles.

    ● All-Weather Protection (IP67/IP56): The battery is rated IP67 (dust/waterproof), with electrical components at IP56 and the full chassis at IPX4. Built for rain and dusty environments.

    ● Heavy-Duty Chassis: Cast-iron drive axle, and a reinforced welded steering axle with a "sandwich" structure to protect steering cylinders.

  • ● Easy Maintenance Access: A wide-angle battery cover and side-opening design allow for quick inspection. All fluids (hydraulic, coolant) are accessible via convenient service windows.

Media Gallery

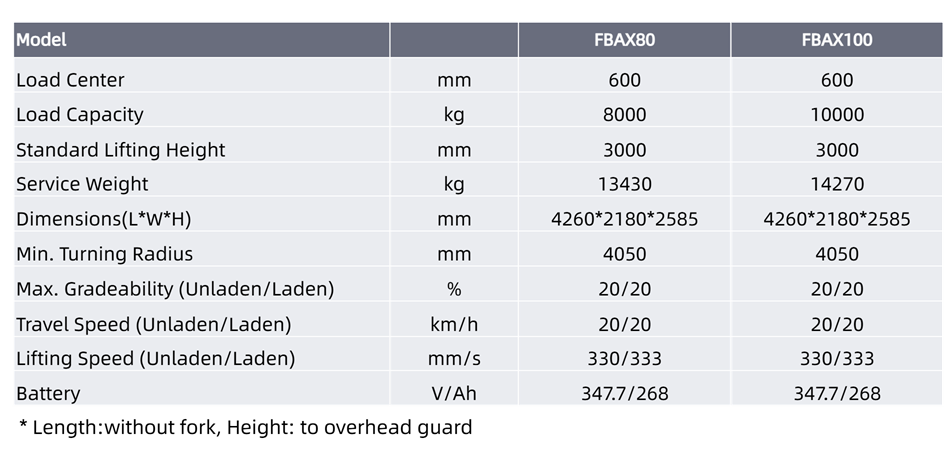

Product Specifications

AX Series 8-10ton Brochure

Learn more about AX Series 8-10ton
