AA Series 1.5-3.5ton
● Dedicated electric forklift tires are designed for enhanced energy savings.
● The upgraded gear pump reduces output pressure, providing high efficiency within the hydraulic system.
● With excellent efficiency and performance, PMS motors provide reliable and durable power solutions for forklifts, facilitating efficient operation, extending equipment service ● life, and reducing maintenance costs.
● The lithium battery features a quick-charge function.
● LED lights provide superior illumination while conserving energy.
● The spacious mast design offers exceptional visibility, enhancing operational safety and work efficiency.
● The protection rating is IPX4.
● The proven and reliable ZAPI controller provides infinitely variable drive and lift control, featuring regenerative braking that captures and stores energy efficiently.
● The Battery Management System (BMS) enhances the safe, efficient, and stable operation of the battery pack, delivering essential battery status information to the truck's control systems for optimal energy management and performance.
● The newly designed streamlined frame features an improved finish and appearance.
● The ergonomically crafted cab significantly enhances operator comfort and control during operations, resulting in an improved driving experience.
- Reinforced operator compartment
- Fully adjustable steering wheel
- Ratchet-type handbrake
- Suspension foot brake
- Water cup holder
- USB charging port
- Hydraulic control levers
● Low side steps and a grab handle facilitate safe and easy access for operators to the operator compartment.
● The output pulse of the system is four times lower than that of a standard gear pump, resulting in a 15dB reduction in noise.
● The integrated taillight protection cover eliminates the need for disassembly, improving the protection level for the lights.
● A low center of gravity, combined with smaller tires, enhances overall truck stability.
● The profile steel mast construction delivers a sturdy and rigid mast that minimizes deflection, offering maximum durability and performance.
● The PM controller maintains working temperatures below 60°C, thereby extending the service life of the motor and controller.
● The colorful LCD display with diagnostic functionality significantly reduces troubleshooting time.
● Maintenance-free motors and advanced electronic control systems minimize maintenance requirements, effectively lowering long-term operating costs.
● The highly integrated power system simplifies the wiring harness layout and effectively reduces the failure rate, enhancing the reliability and ease of maintenance of the system.
● Compared to conventional AC forklifts, the service interval can be extended by approximately 20%.
● The electrical control panel and related equipment are housed inside the counterweight, allowing easy access and providing protection against floor debris, contaminants, and moisture.

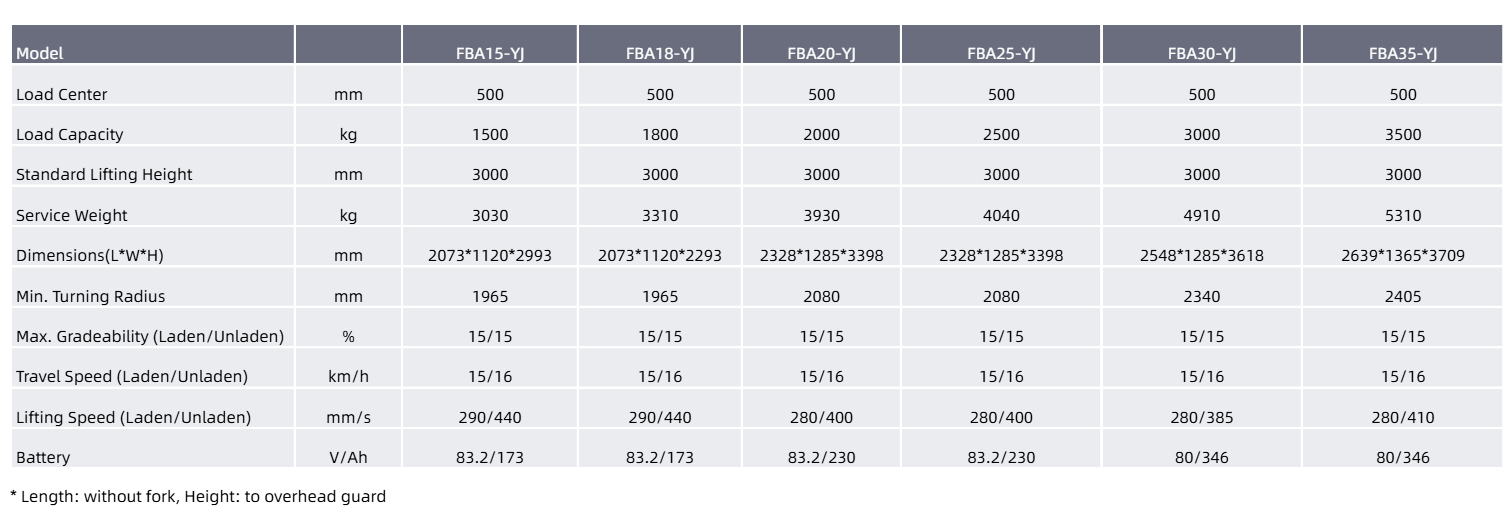

Product Specifications
Applications
